Description
The vmsTRACK-PRO-CS operates with CSTDMA Class B transmission capabilities. CSTDMA stands for “Carrier Sense Time Division Multiple Access,” which is used for Class B AIS units. The vmsTRACK-PRO-CS operates according to the “”listen before talk”” principle. When a transmission is due, the transceiver monitors the dedicated slot. If no transmission from a Class A transceiver is taking place in that slot, the CSTDMA unit initiates the transmission itself in that slot. The system is expandable to a complete target management system. The vmsTRACK-PRO-CS real-time tracking system enables a radar traffic monitoring system for commercial use. The transmission provides information about the current GPS position, as well as the course and speed of the object, enabling real-time tracking and monitoring of objects to a base station.
Expansion Modules
- Remote control
- On special request, the vmsTRACK-PRO-CS is equipped with an integrated BLUETOOTH®LE module for special applications. BLUETOOTH®LE connectivity on your smartphone, it is possible to remotely control the vmsTRACK-PRO-CS (push buttons) and view the status (LED display).
- A122 Tamperproof and Power Socket

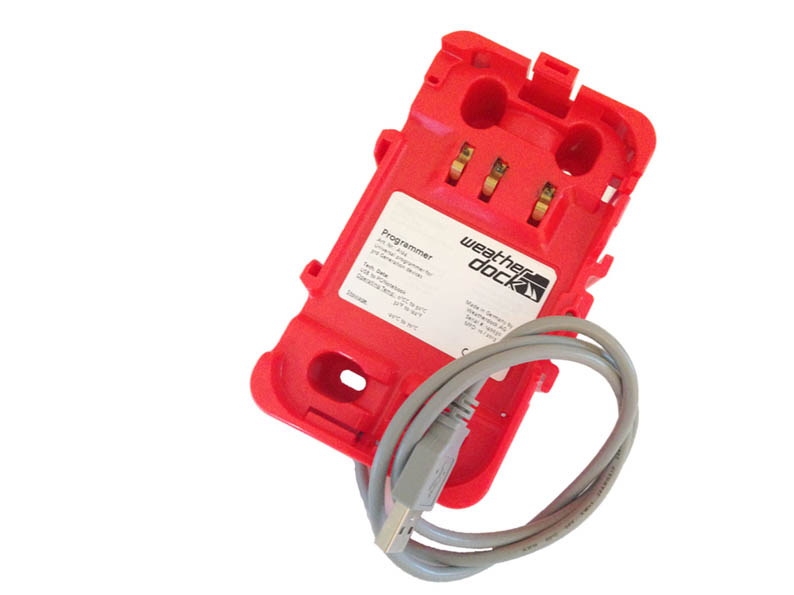

- A124 easyPROGRAMMER – programming station for custom applications
Android® and iOS® apps are available to use this functionality.”
Key Features
- Portable VHF position transmitter
- Position reporting via proprietary frequencies for “closed user groups” (128-bit encrypted)
- AIS or customer-specific VHF frequencies in accordance with existing base stations possible
- Certified as AIS CSTDMA Transponder (CSTDMA – Carrier Sense Time Division Multiple Access) “available on request”
- Embedded geo-reference coastline table
- Separate emergency/alarm button
- Intelligent high-tech tamper protection
- Waterproof up to 10 m depth; IP6
- Palm size and easy portability
- Power approx. 3W
- Built-in rechargeable NiMH battery (lifespan according to preset transmission interval)
- Transmission range up to approx. 10 nm (depending on the receiving antenna height)
- Made in Germany
Technical data
- radiated power: >= 1 W (typical application for objects)
- Specifiable frequency range from 156.025 MHz to 162.025 MHz, 25 kHz channel spacing (Please contact your local regulatory authority regarding possible frequencies.)
- Operating temperature range: -10 °C to +65 °C
- Storage temperature range: -30 °C to +65 °C
- Charging temperature range: 0°C to +45°C
- Dimensions (L/W/H): 130 x 70 x 30 mm
- Weight: 250 g
